Description
1. Brief description

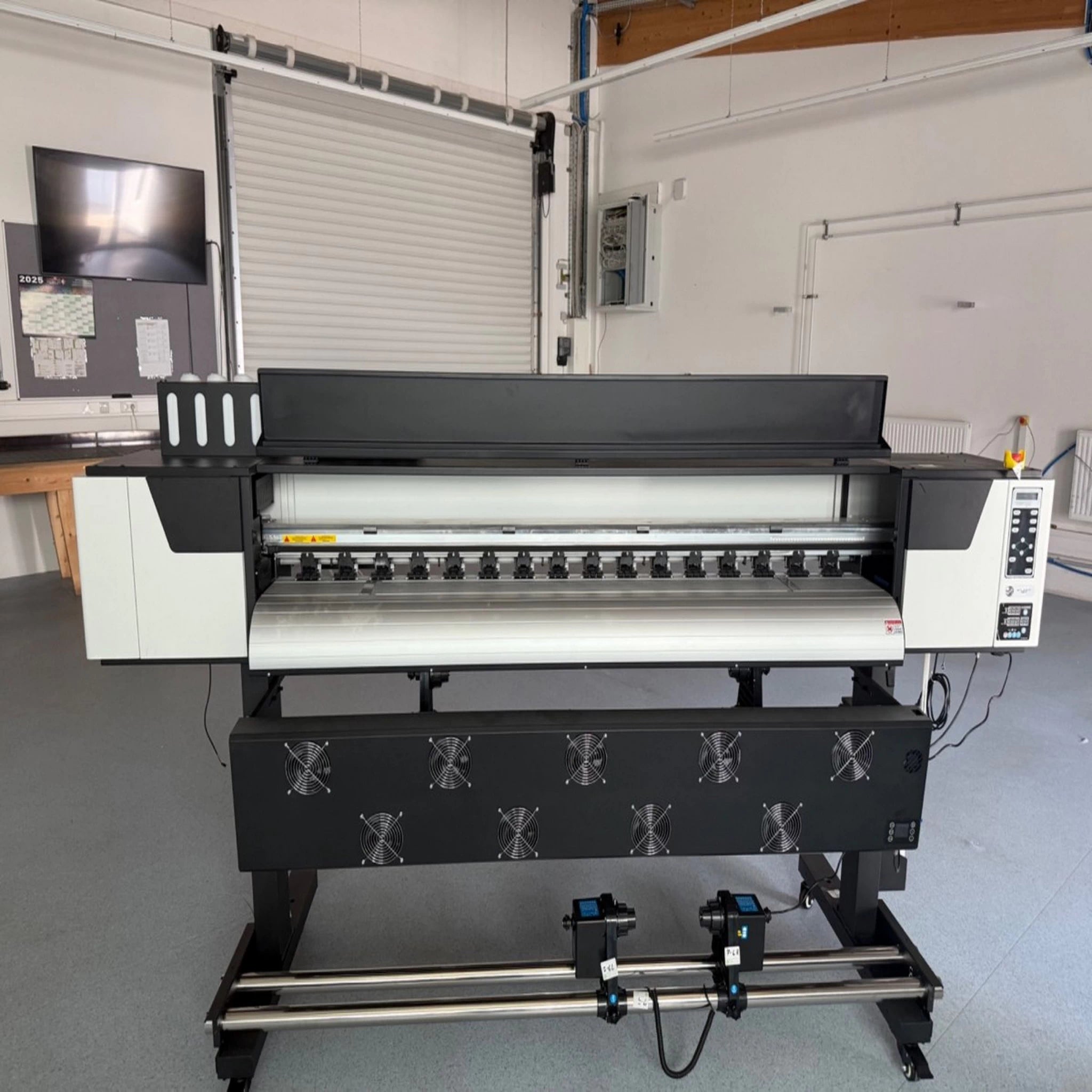

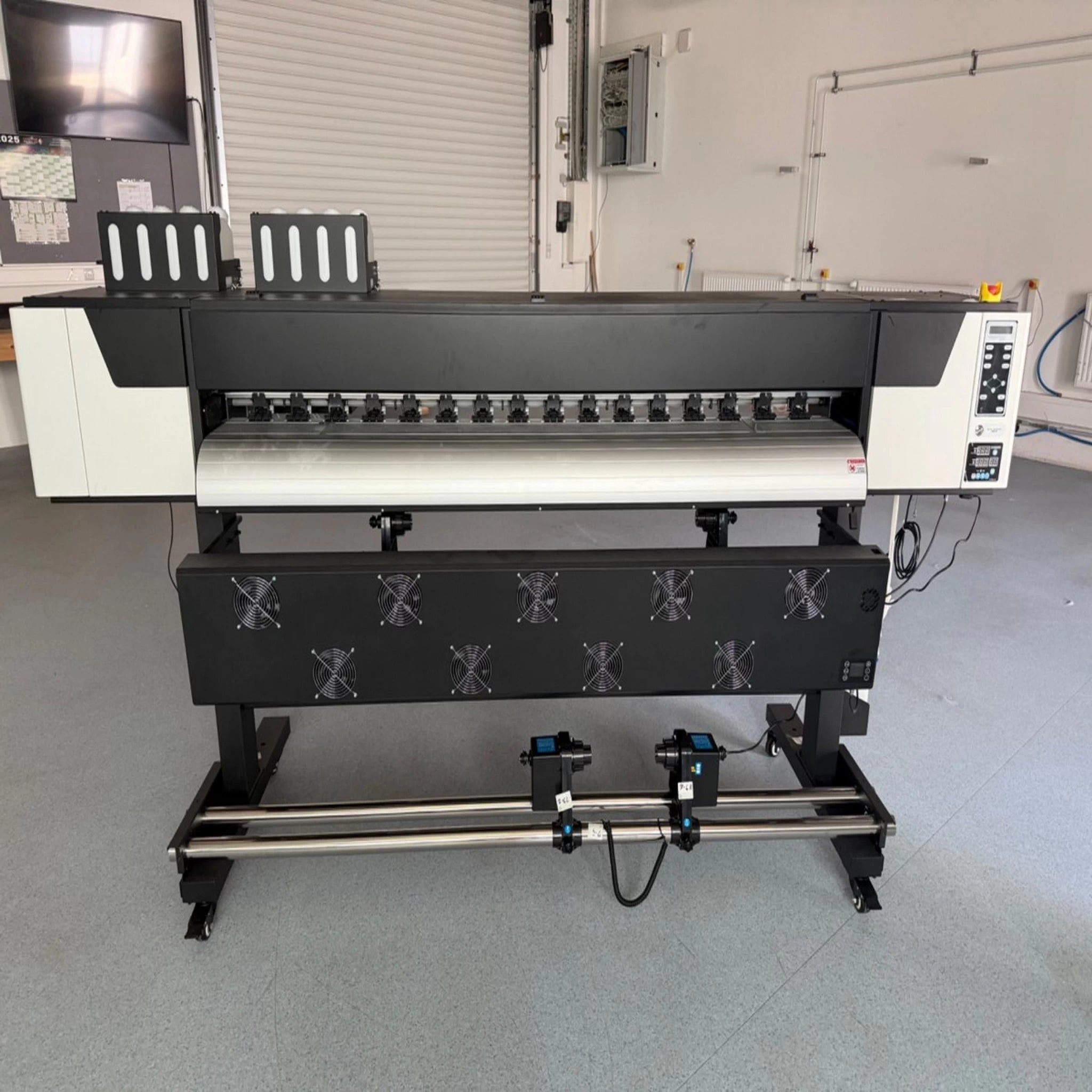

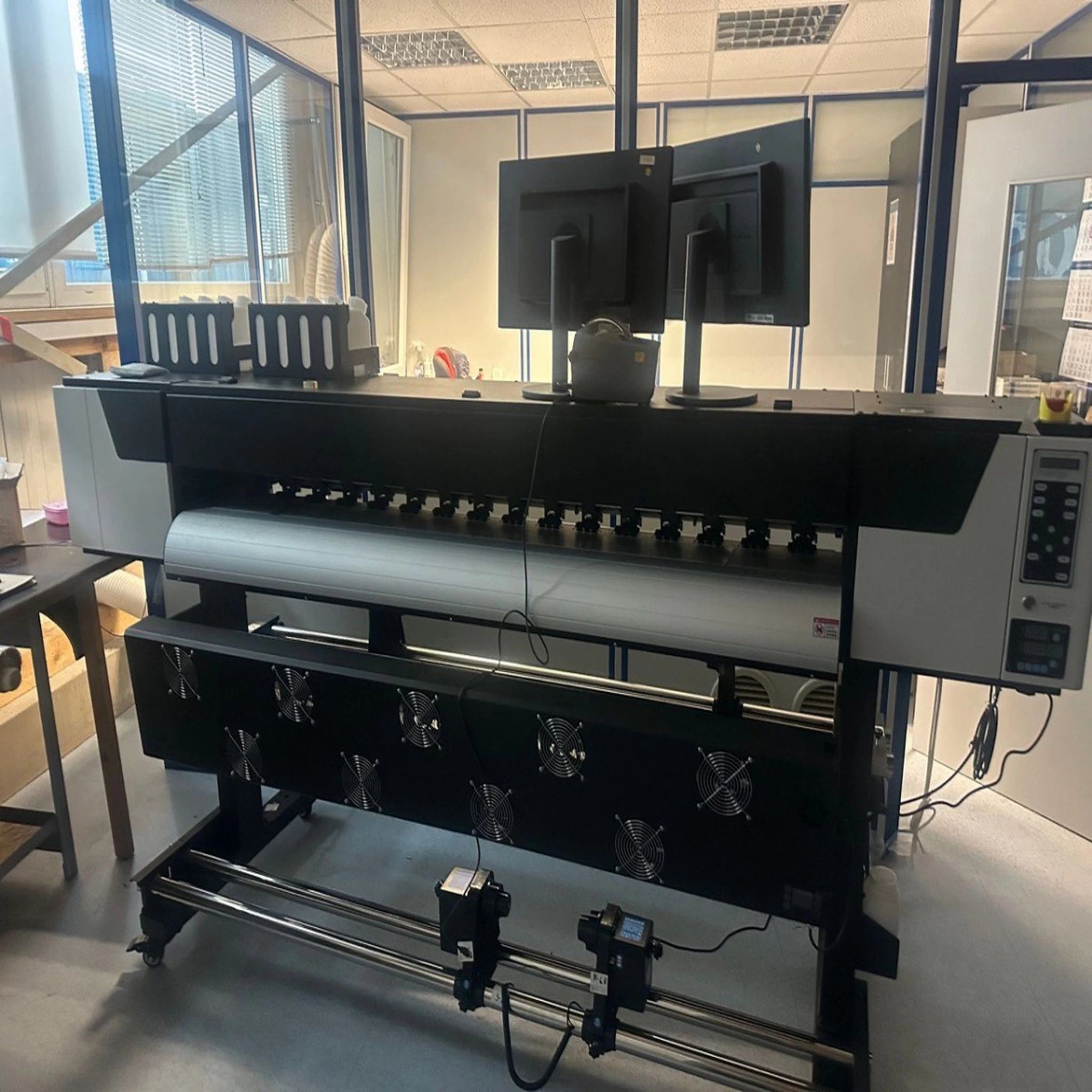

The 1.8M Hydrographics Printer LY1800 is a professional ECO-solvent large format printer with a print width of 1.80 m, specifically designed for printing water transfer films (PVA/Hydrographics films).
The combination of an 8-color printing system, automatic rewinding and integrated drying makes the LY1800 ideal for individual decors, series production and industrial surface finishing.
2. Scope of application
-
Printing of water transfer films (hydrographics/PVA films)
-
Production of custom designs for automotive, motorcycle, helmet, interior, furniture, lifestyle products, etc.
-
In-house production of customer designs, logos and special patterns
-
Use in companies that want to become independent of standardized warehouse designs
3. Product features and benefits
-
Large-format eco-solvent printer with a 1.80 m print width
-
Specifically designed for water transfer films (blank PVA films).
-
8-color system for brilliant, high-contrast prints with fine details
-
Automatic winding system for convenient roll-to-roll operation
-
Integrated drying for fast further processing
-
High productivity depending on the pass setting (up to approx. 8.5 m²/hr).
-
Robust, industrial design with smooth running
-
Control via Hansen system, compatible with MainTop RIP
4. Technical Data (Overview)

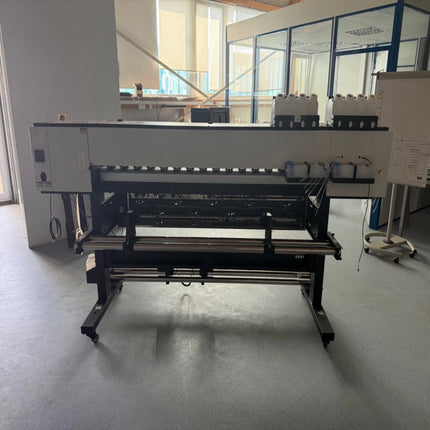

Device type: Water transfer printing, custom design printer

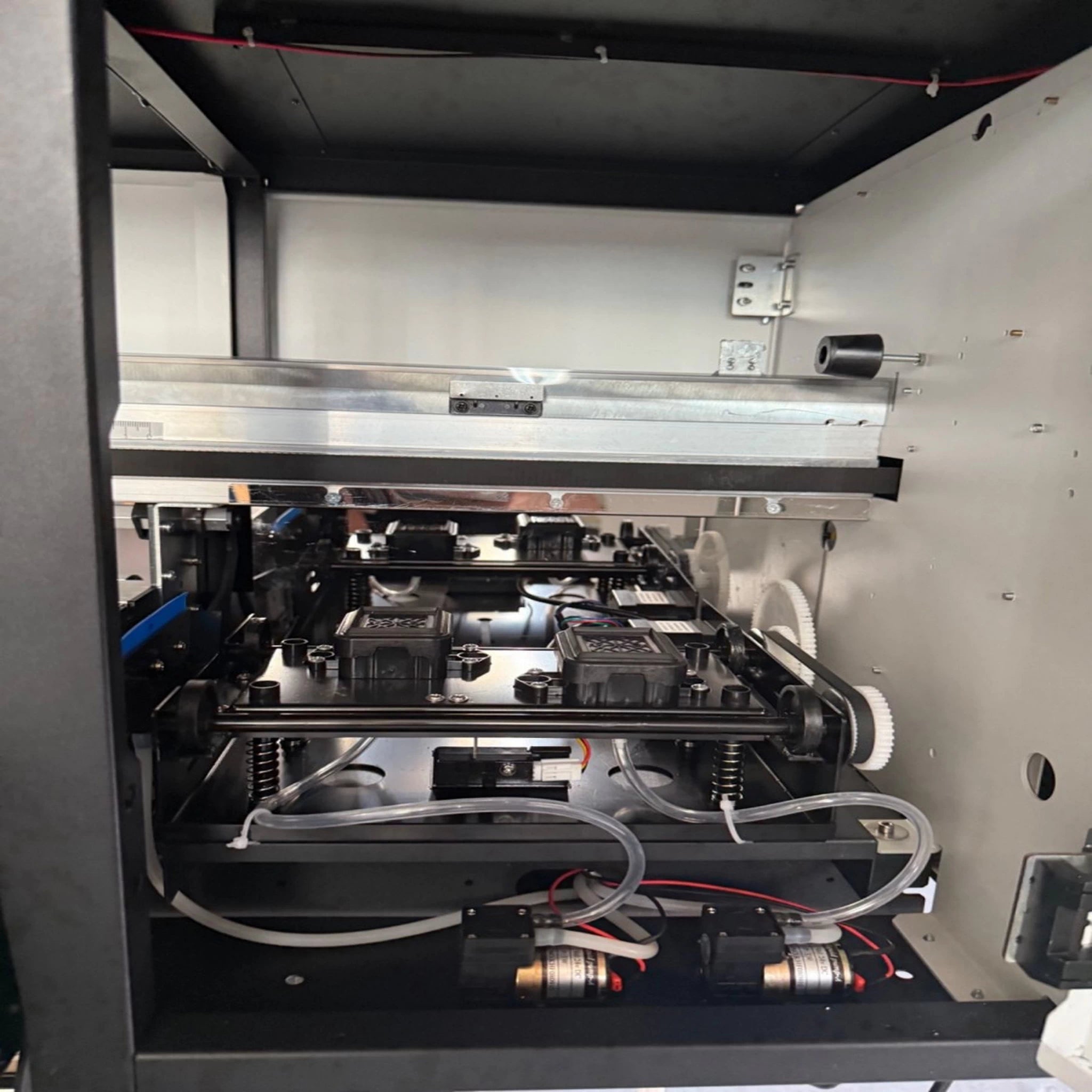

Printhead / nozzle model: HD-U1 Single-Head
Number of nozzles: 1
Maximum print width: 1800 mm
Print resolution: 360 dpi / 720 dpi
Printing inks: 8-color system, eco-solvent inks

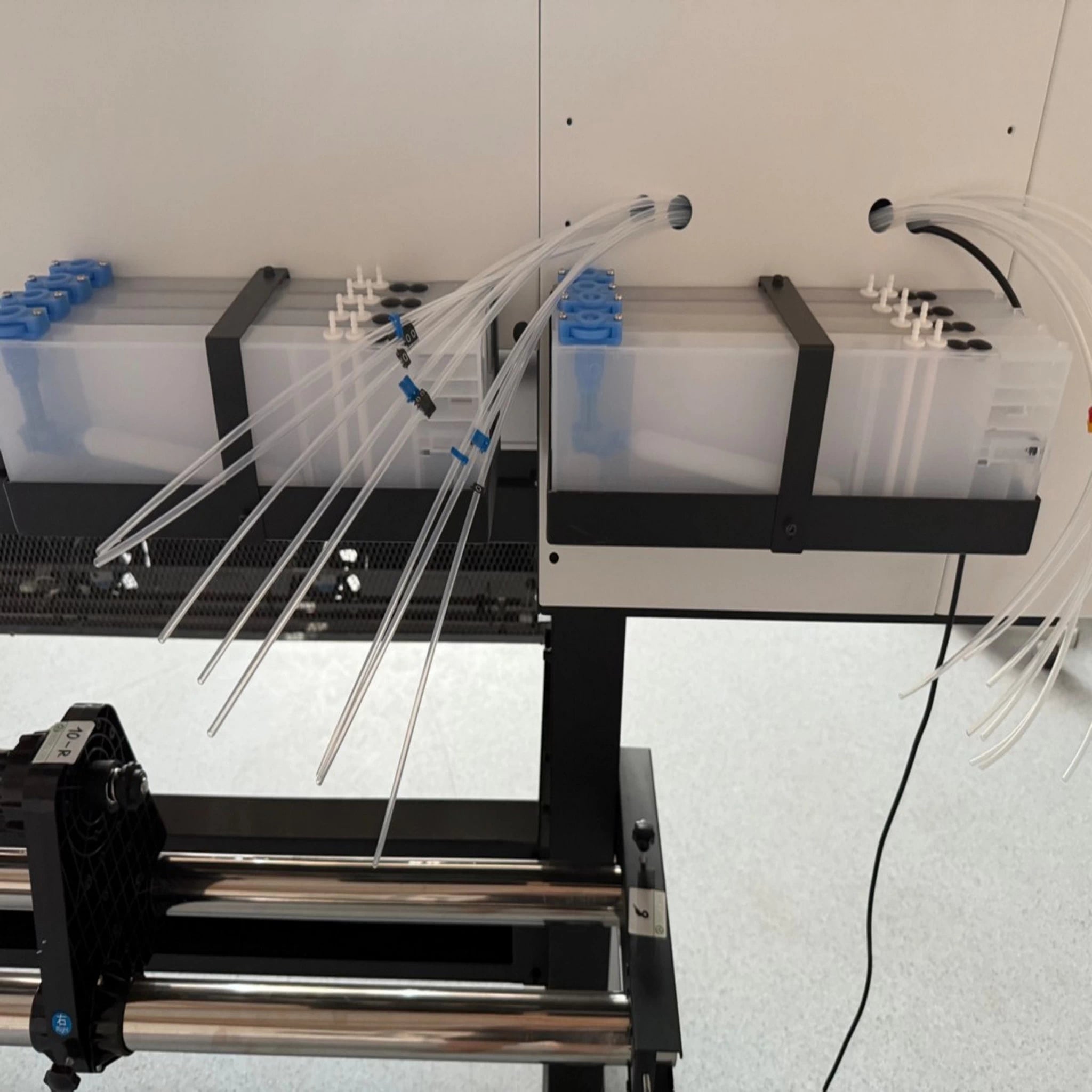

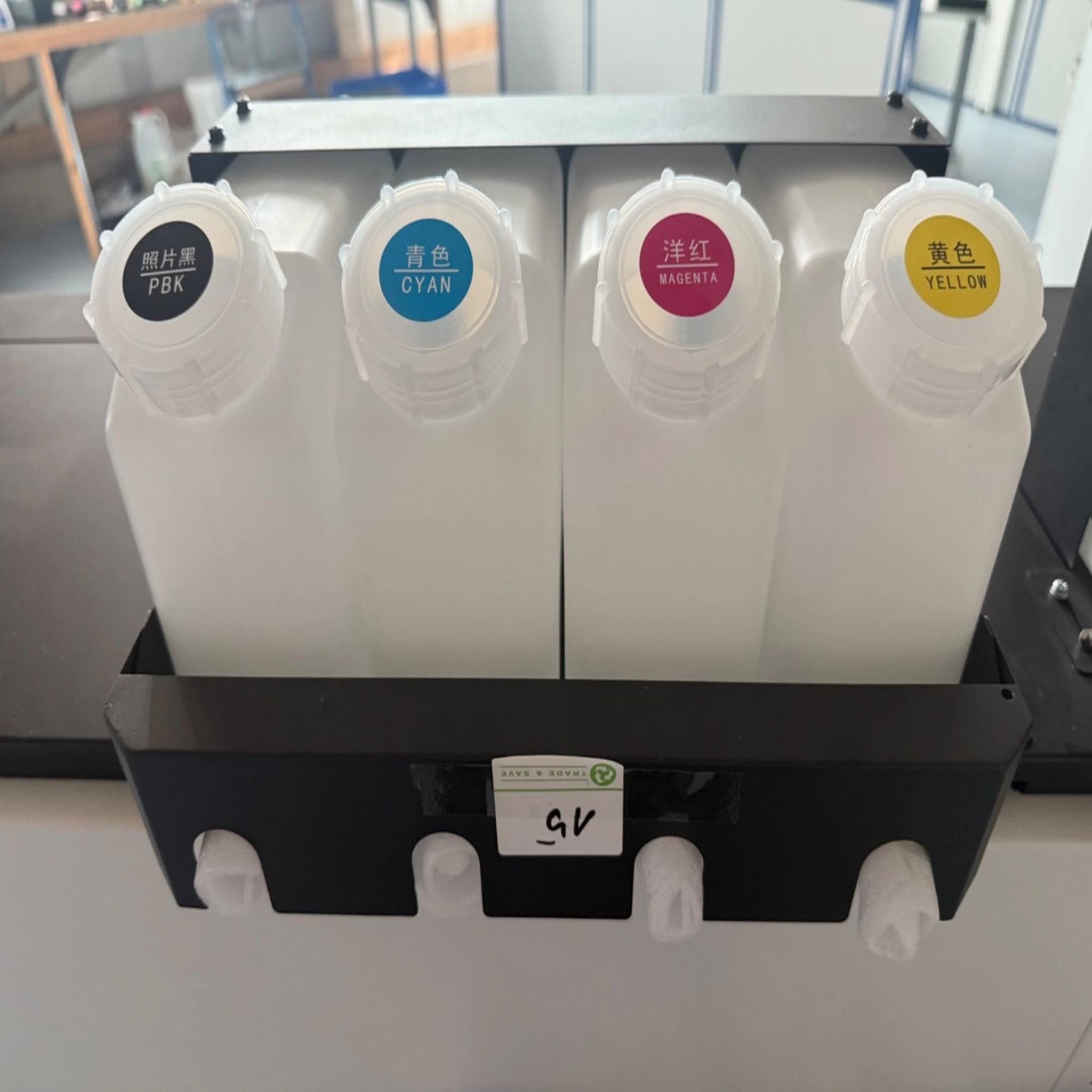

Ink reservoirs: 2 liters per color
Compatible inks: ECO-solvent water transfer inks (for PVA hydrographics film)
Production capacity (guideline values):
-
12 passes: approx. 4 m² per hour
-
8 passes: approx. 6.5 m² per hour
-
6 passes: approx. 8.5 m² per hour
Ink supply: Positive printing system

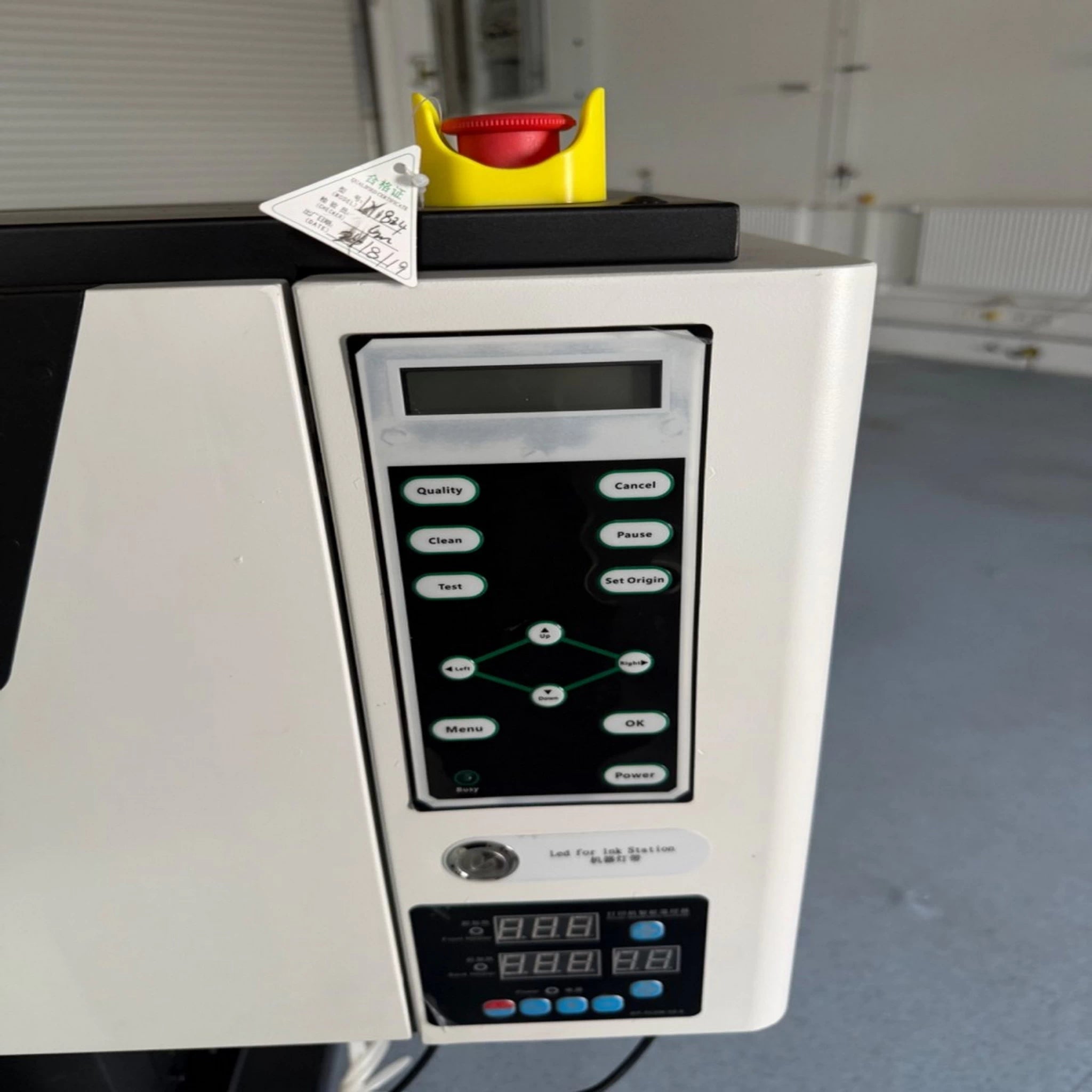

Control system: Hansen – Single-Head HD-U1
RIP software: MainTop (or compatible RIP software)
Operating languages on the device: Chinese / English
Mains voltage: AC 220 V, 50/60 Hz
Power consumption: approx. 6 kW
Device dimensions (L × W × H): 2830 × 800 × 1460 mm
Net weight: approx. 160 kg
Recommended PC configuration:
-
Processor: Intel i5 or higher
-
Interfaces: USB 3.0, Gigabit Ethernet
-
Minimum RAM: 4 GB
-
Mass storage: SSD hard drive
5. System requirements and combinations
The following system environment is recommended for stable operation:
-
High-performance Windows PC (Intel i5 or better, SSD)
-
Installed RIP software (e.g., MainTop)
-
Suitable eco-solvent inks for water transfer films
-
Suitable blank PVA films (Hydrographics film)
-
Air-conditioned printing and storage area (recommended 20–25 °C.)
6. Typical Workflow (Brief Description)
-
Creating or preparing the print design (e.g. with graphics software such as Adobe Illustrator, CorelDRAW).
-
Setting up the job in the RIP software, defining the color profile and resolution.
-
Loading the printer with blank PVA film and aligning the web.
-
Start of the print job – automatic rewinding and drying during printing.
-
Store the printed films in a dry place under suitable environmental conditions.
-
Use in water transfer tanks (activator, soaking time and temperature according to the respective process).
7. Storage and Transport
-
The printer should be operated in dry, clean production areas.
-
Recommended ambient temperature: 20–25 °C
-
Recommended relative humidity: 45–60%
-
Transport according to manufacturer's instructions, ensuring stable fixing and protection from vibration.
8. Safety instructions
-
National and EU-relevant regulations on the handling of chemicals (inks, cleaning agents, etc.) must be observed.
-
Use personal protective equipment (PPE) in accordance with the safety data sheets of the inks and additives used.
-
Ensure adequate ventilation of the pressure chamber.
-
Electrical connections should only be made by qualified personnel.
9. Disclaimer
The information provided in this data sheet is based on the manufacturer's current information and our experience.
All technical data, performance specifications and recommendations serve as non-binding guidelines and must be verified by the user under the respective operating conditions.
Changes to technical data in the course of product optimizations are expressly reserved.
